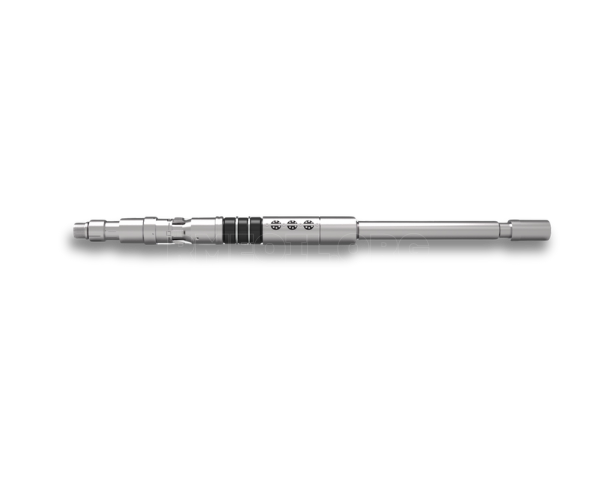

Designed for application in production workflows, reservoir stimulation campaigns, and well testing procedures, the RR-3D Dual-Anchor Retrievable Casing Packers deliver reliable performance in downhole environments. Its hydraulically driven hold-down component is positioned beneath the pressure equalization valve for optimized functionality. Equipped with a field-validated three-component packing assembly, the unit also incorporates a balance sleeve structure that ensures the bypass channel remains sealed during operation. This packer series is compatible with casing diameters ranging from 4 1/2” to 9 5/8”.
|
SPECIFICATIONS |
|||||||
|
Part number |
CasingOD |
Casing Wt |
Setting range |
Tool OD |
Tool ID |
Connection thread |
|
|
(in) |
(lbs/ft) |
Min(in) |
Max(in) |
(in) |
（in） |
||
|
RMDGRP23837700 |
4 1/2 |
11.6-13.5 |
3.91 |
4 |
3.77 |
1.94 |
2 3/8"-8RD EU |
|
RMDGRP27841300 |
9.5-10.5 |
3.91 |
4.09 |
|
1.9 |
2 7/8"-8RD EU |
|
|
RMDGRP27842500 |
5 |
15-18 |
4.25 |
4.408 |
4.13 |
||
|
RMDGRP27845000 |
5 |
11.5-15 |
4.408 |
4.56 |
4.25 |
||
|
5 1/2 |
26 |
||||||
|
RMDGRP27846400 |
5 1/2 |
20-23 |
4.625 |
4.778 |
4.5 |
2 |
|
|
RMDGRP27847800 |
15.5-20 |
4.778 |
4.95 |
4.64 |
|||
|
RMDGRP27847800 |
5 1/2 |
13-15.5 |
4.95 |
5.19 |
4.78 |
||
|
5 3/4 |
22.5 |
||||||
|
6 |
26 |
||||||
|
RMDGRP27847800 |
6 |
20-23 |
5.191 |
5.39 |
5.06 |
||
|
RMDGRP27850600 |
15-18 |
5.391 |
5.56 |
5.16 |
|||
|
RMDGRP27851600 |
6 5/8 |
34 |
5.561 |
5.609 |
5.41 |
||
|
RMDGRP27854100 |
28-32 |
5.61 |
5.791 |
5.48 |
|||
|
RMDGRP27854800 |
24-28 |
5.791 |
5.921 |
5.48 |
|||
|
RMDGRP27854800 |
28-32 |
5.6 |
5.791 |
5.48 |
2.42 |
2 7/8"-8RD EU |
|
|
RMDGRP27854800 |
6 5/8 |
24-28 |
5.791 |
5.921 |
5.59 |
||
|
7 |
38 |
||||||
|
RMDGRP27855900 |
6 5/8 |
17-20 |
5.922 |
6.135 |
5.78 |
||
|
7 |
32-35 |
||||||
|
RMDGRP27857800 |
6 5/8 |
24 |
5.83 |
5.937 |
5.66 |
||
|
7 |
38 |
||||||
|
RMDGRP27856600 |
6 5/8 |
17-20 |
5.938 |
6.135 |
5.81 |
||
|
7 |
32-35 |
||||||
|
RMDGRP27858100 |
7 |
26-29 |
6.136 |
6.276 |
5.97 |
||
|
RMDGRP31259700 |
3 1/2"-8RD EU |
||||||
|
RMDGRP27860800 |
20-26 |
6.276 |
6.456 |
6.08 |
2 7/8"-8RD EU |
||
|
RMDGRP27862700 |
17-20 |
6.454 |
6.578 |
6.27 |
|||
|
RMDGRP27864500 |
7 5/8 |
33.7-39 |
6.579 |
6.797 |
6.45 |
||
|
RMDGRP27866700 |
24-29.7 |
6.798 |
7.025 |
6.67 |
|||
|
RMDGRP27868100 |
20-24 |
7.025 |
7.125 |
6.81 |
|||
|
RMDGRP31273100 |
8 5/8 |
44-49 |
7.511 |
7.687 |
7.31 |
3.47 |
3 1/2"-8RD EU |
|
RMDGRP31275300 |
32-40 |
7.688 |
7.921 |
7.53 |
|||
|
RMDGRP31277800 |
20-28 |
7.922 |
8.191 |
7.78 |
|||
|
RMDGRP31282200 |
9 5/8 |
47-53.5 |
8.343 |
8.681 |
8.22 |
3.94 |
|
|
RMDGRP31284400 |
40-47 |
8.681 |
8.835 |
8.44 |
|||
|
RMDGRP31285900 |
29.3-36 |
8.836 |
9.063 |
8.59 |
|||
|
RMDGRP27884400 |
40-47 |
8.681 |
8.835 |
8.44 |
2 7/8"-8RD EU |
||
|
RMDGRP27885900 |
29.3-36 |
8.836 |
9.063 |
8.59 |
|||
