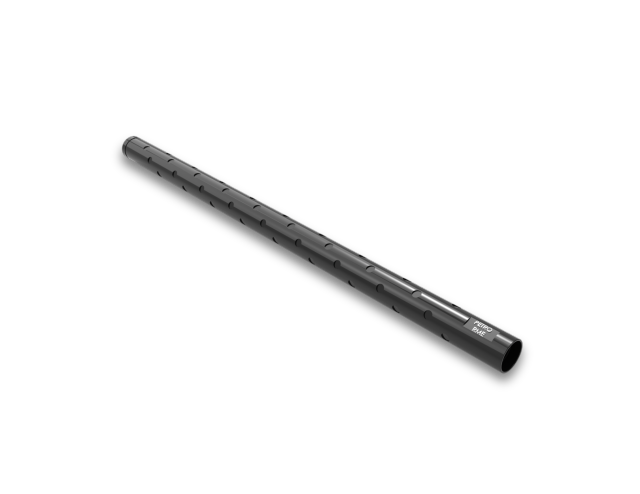

![3 1/8in [80mm] Scalloped Hollow Carrier Gun 6spf (20spm)](http://ueeshop.ly200-cdn.com/u_file/UPBB/UPBB888/2603/03/products/ScallopedHollowCarrierGun-142432c4dc.png?x-oss-process=image/quality,q_100)
Gun Body Material: Heat treated, seamless steel tubing
Gun Body Configuration: Threaded and scalloped
Charge Tube Type: Round steel tube
Type of Tandem connection: Booster-to-booster
Initiation Point: Top or bottom fired options available for wireline and TCP
0-Ring Material: Nitrile-90 Durometer or Viton-95 Durometer
0-Ring Size for Threaded Gun: AS231-NBR-90-1/ AS231-FKM-95-1
Spacer Gun Kit: 80-D-SK-1
Booster Kit: BK-D-1
*Accept customization
![3 1/8in [80mm] Scalloped Hollow Carrier Gun 6spf (20spm)](http://ueeshop.ly200-cdn.com/u_file/UPBB/UPBB888/2603/03/products/ScallopedHollowCarrierGun-142432c4dc.png?x-oss-process=image/quality,q_100/resize,m_lfit,h_640,w_640)
| Specifications | 6spf [20spm ] |
|---|---|
| Phasing | 60° |
| Nominal O.D. | 3.375 in [85.725mm] |
| Nominal Thickness | 0.375 in [9.525mm] |
| Drift Dia. | 2.55 in [64.77mm] |
| Pressure Rating | 20000 psi [137.9Mpa] |
| Gun End to First Scallop Distance | 7in [177.8mm] |
| Gun Swell at Liquid | 3.57in[91mm] |
| Max Tension | 270,000lbf [1200kN] |
| Thread | 2 13/16"-6Acme-2G |
| Charge info | 26g DP / DPEX /GH |
| Assembly Part No. | Carrier Part No. | Length | Shot Total | Assembly Weight |
|---|---|---|---|---|
| 86-6-60-04-26gDP-GA-D | 86-6-60-04-26gDP-G-D | 4ft | 18 | 53.8lb[24.4kg] |
| 86-6-60-07-26gDP-GA-D | 86-6-60-07-26gDP-G-D | 7ft | 36 | 94.1lb[42.7kg] |
| 86-6-60-11-26gDP-GA-D | 86-6-60-11-26gDP-G-D | 11ft | 60 | 148lb[67.1kg] |
| 86-6-60-14-26gDP-GA-D | 86-6-60-14-26gDP-G-D | 14ft | 78 | 188lb[85.3kg] |
| 86-6-60-21-26gDP-GA-D | 86-6-60-21-26gDP-G-D | 21ft | 120 | 282.2lb[128kg] |
