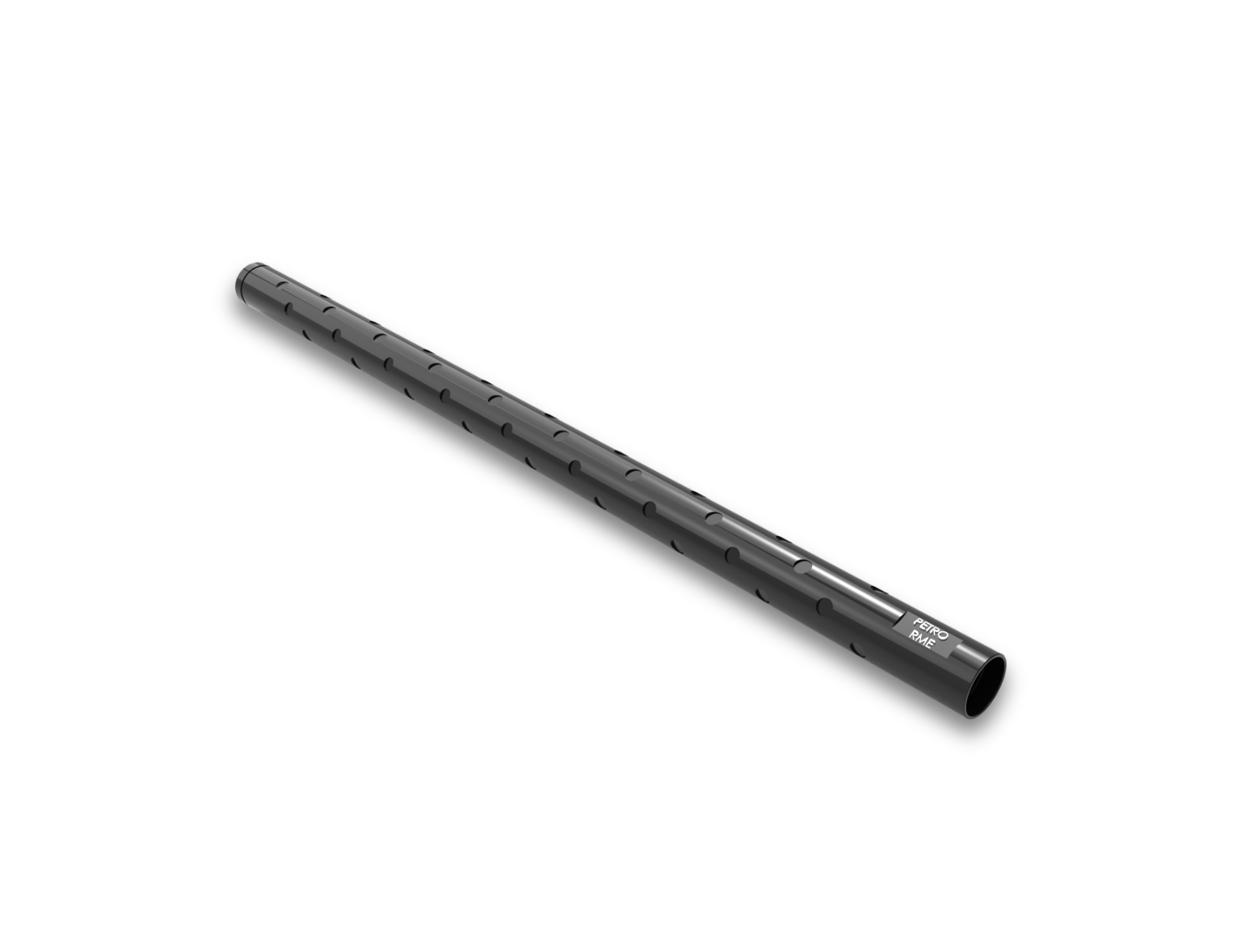

![3 1/8in [80mm] Scalloped Hollow Carrier Gun 5spf (16spm)](http://ueeshop.ly200-cdn.com/u_file/UPBB/UPBB888/2603/03/products/ScallopedHollowCarrierGun-135110409c.png?x-oss-process=image/quality,q_100)
Gun Body Material: Heat treated, seamless steel tubing
Gun Body Configuration: Threaded and scalloped
Charge Tube Type: Round steel tube
Type of Tandem connection: Booster-to-booster
Initiation Point: Top or bottom fired options available for wireline and TCP
0-Ring Material: Nitrile-90 Durometer or Viton-95 Durometer
0-Ring Size for Threaded Gun: AS230
Spacer Gun Kit: 80-D-SK-1
Booster Kit: BK-D-1
*Accept customization
![3 1/8in [80mm] Scalloped Hollow Carrier Gun 5spf (16spm)](http://ueeshop.ly200-cdn.com/u_file/UPBB/UPBB888/2603/03/products/ScallopedHollowCarrierGun-135110409c.png?x-oss-process=image/quality,q_100/resize,m_lfit,h_640,w_640)
| Specifications | 5spf [16spm] |
|---|---|
| Phasing | 60° |
| Nominal O.D. | 3.125 in [79.375mm] |
| Nominal Thickness | 0.313 in [7.95mm] |
| Drift Dia. | 2.45 in [63.23mm] |
| Pressure Rating | 20000 psi [137.9Mpa] |
| Gun End to First Scallop Distance | 7.2 in [182.8mm] |
| Gun Swell at Liquid | 3.40” |
| Max Tension | 235000 LBS |
| Thread | 2 3/4”-6Acme-2G |
| Charge info | 22.7g DP2 |
| Assembly Part No. | Carrier Part No. | Length | Shot Total | Assembly Weight |
|---|---|---|---|---|
| 80-5-60-04-22.7gDP2-GA-D | 80-5-60-04-22.7gDP2-G-D | 4ft | 15 | 44.3lb[20.1kg] |
| 80-5-60-07-22.7gDP2-GA-D | 80-5-60-07-22.7gDP2-G-D | 7ft | 30 | 77.6lb[35.2kg] |
| 80-5-60-11-22.7gDP2-GA-D | 80-5-60-11-22.7gDP2-G-D | 11ft | 50 | 122.3lb[55kg] |
| 80-5-60-14-22.7gDP2-GA-D | 80-5-60-14-22.7gDP2-G-D | 14ft | 65 | 155.2lb[70.4kg] |
| 80-5-60-21-22.7gDP2-GA-D | 80-5-60-21-22.7gDP2-G-D | 21ft | 100 | 232.8lb[105.6kg] |
